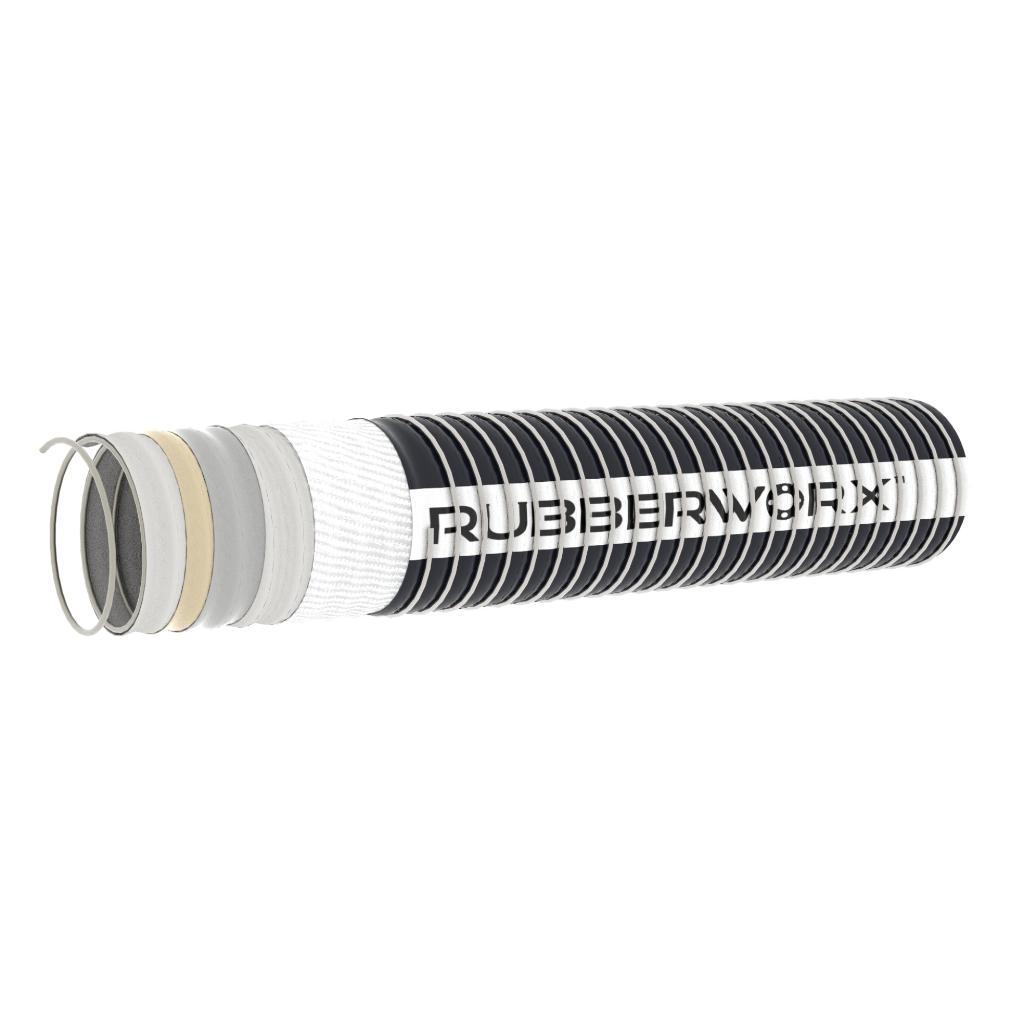

1" XHT CHEM COMP PTFE/PTFE SS
Product Code: 8C092-100
You must be logged in.
Description
8C092 XHT Chemical Transfer Hose – This heavy-duty extra high temp suction and discharge composite hose is designed for use in chemical transfer applications. The flexible design is perfect for tank farms,midstream pumping locations, loading stations,and loading arm hoses. In applications where bend radius and weight are an issue with rubber, chemical composite is the perfect solution.
Additional information
| Tube | PTFE Inner Film |
|---|---|
| Reinforcement | Spiral Ply Polyfabric Film 316 Stainless Steel |
| Vacuum Reinforcement | 316 Stainless Steel |
| Cover | Black PTFE Film Corrugated |
| Temperature Range (°F) | -40 to 350 |
| Hose ID (Decimal Inch) | 1.00 |
| Hose Nominal OD (Decimal Inch) | 1.12 |
| Working Pressure (psi) | 250 |
| Bend Radius (Decimal Inch) | 4 |
| Vacuum Pressure (inHg) | 29 |
| Hose Weight (lb/ft) | 0.53 |
